Features:

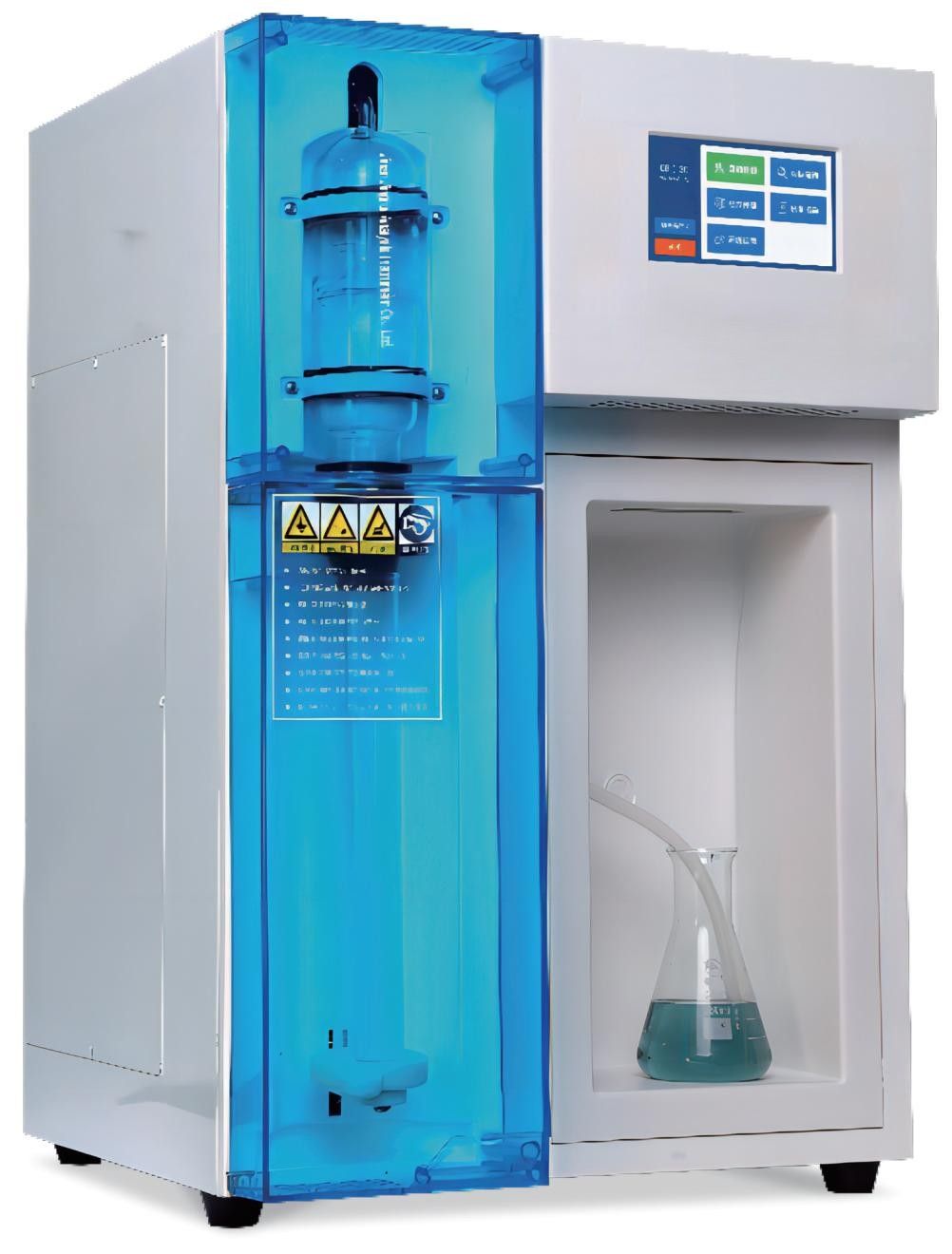

The CS-9830 is kjeldahl apparatus that combines the functions of distillation, titration and waste liquid discharge. Equipped with the advanced core control system, it controls the steam supply, real-time detection of condensation temperature and other functions to ensure the accuracy of test results.
Specifications:
Model | KA-9830 | |
---|---|---|
Analytical Range | 0.1~200 mgN | |
Accuracy(RSD) | ≤0.5%(30mgN, 0.1mol/L H+) | |
Recovery Rate | ≥99.5% | |
Input Mode of Titrant Concentration | Manual input | |
Sample Analysis Time | 3-4min/(cooling water temp 18℃) | |
Blank Deduction of Sample | Automatic deduction | |
User-made Recipe | 99 groups | |
Re-add Alkali During Distillation Process | 0-99mL/ per time | |
Fertilizer Analysis Model (nitro) | Reaction time 0-2 hours | |
Cooling Water Consumption | 1.2L-3L/min | |
Connectable Fittings | cooling water/reagent level | |
Data Storage | 1 million sets of data | |
Printer | Not applicable | |
The Digestive Tube Discharges Waste Automatically | Manual processing | |
Steam Pressure Monitoring and Alarm | Not applicable | |
Distillation Sample Temperature Monitoring and Alarm | Not applicable | |
Cooling Water Flow Monitoring and Alarm | Not applicable | |
Steam Flow Control | Not applicable | |
Automatic Cleaning of Alkali Pipeline | Not applicable | |
Safe Alkali Adding Mode | Equipped (0-999 sec) | |
Steam Boiler over-Temperature Alarm System | 120℃ | |
Steam Boiler with Dry Burning-resistant Protection | Equipped | |
Safety Gate Switch | Equipped | |
Digestive Tube Vacancy Switch | Equipped | |
Power Supply | AC220V, 50Hz | |
Heating Power | 2KW | |
Size(W×D×H)(mm) | 500x460x710 |
